CUSTOM HOME ON CULDESAC LOT FOR SALE OR RENT!

1202 Oakridge Ct, Palatine

      UNIQUE PRAIRIE STYLE HOME
      CUSTOM DESIGN AND WOODWORK
      ENERGY EFFICIENT CONSTRUCTION AND ENERGY STAR PRODUCTS
      3001 SQ. FT. TWO STOREY HOME
      DRAWN BY JAMES H. DEAL & ASSOCIATES ARCHITECTS
      THIS IS A NEW CUSTOM DESIGNED HOME IN LAKESIDE ESTATES SUBDIVISION

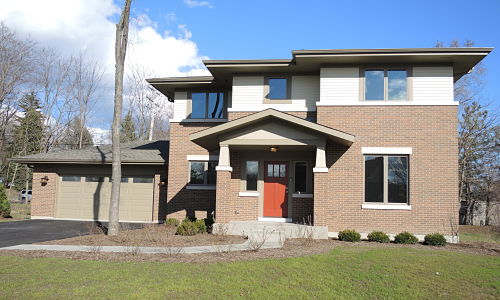

PRAIRIE STYLE CUSTOM HOME on Cul-de-sac.

Home features also include brick & low maintenance Hardie siding exterior (with a limited 15 year finish guarantee) and brick patio and fenced back yard. Stainless steel Whirlpool and GE appliances in kitchen along with custom quartz countertops, 42" cherry cabinets and walk in pantry. Master bath has 2 sinks in custom quartz tops, custom mirrors, Moen and Kohler plumbing fixtures, an oversized 5' x 4' shower with 2 shower heads (one is handheld) porcelain tile with a feature detail and a frameless glass door. Interior finishes include custom quarter sawn oak fireplace mantel (with marble tile) and stair rails, custom painted woodwork, 3 panel solid core doors, built in cherry cabinetry in the study, wood floors throughout first floor, low voltage wiring for cable TV and internet, zero VOC paints and finishes for interior air quality and additional closet space in laundry, second floor hall and master bath.

ENERGY STAR HOME CAN QUALIFY FOR Energy Efficient Mortgage because monthly utility bills will be lower due to installing Energy Star appliances, LED lighting, windows (Pella) and doors and water saving plumbing fixtures and sealed gas fireplace. The upgraded HVAC system with 95+ Trane furnace w/ electronic control fresh air intake, April Air humidifier and 14.5 SEER central AC unit are all controlled by a Trane Nexia WIFI enabled smart thermostat. The building envelope is better than energy code requirements with an R-22 wall assembly (R-17 insulation w/ R-5 wall sheathing), caulk sealed wall plates, foamed sealed sill plates, all wall penetrations taped and foam sealed, spray in cellulose insulation in the walls (R-17) and box headers (R30)and R-49 cellulose ceiling insulation. These efforts to tighten the building envelope showed with Blower Door Test results of 1 ACH (air changes per hour), far below the code required minimum 5 ACH. HEED Computer Energy modeling program also rates this homes building envelope to be 33% more efficient than a comparable home built as recently as 10 years ago and this figure does not account for increased efficiency in equipment, appliances, lighting and plumbing fixtures.

Custom Design by James H Deal & Associates Architects, and built by Deal Construction Company.

FROM CONCEPT TO COMPLETION.

SALE PRICE $535,000

RENTAL PRICE $3300 mo.



OPTIONAL SOLAR POWER
A complete installation for 20 to 22 panel array would be roof mounted on the south pitch and supply approximately 6 kW of power per solar hour. This would include panels, microinverters, mounting system, and all wiring, disconnects and breakers required and miscellaneous interior alterations.
total gross system cost- $16,542
federal tax credit 30% - $ 4963
NET SYSTEM COST - $11,579

misc. int. alterations - $ 2500
balance of system cost - $14,079
Actual system production varies up to 10% depending on site conditions- annual production @7800 kWh
estimated annual cost of electricity savings @ $0.125 per kWh- $975 annually
State of Illinois renewable energy credit program (SREC)- 1 credit per 1000 kWh- system SRECS- 7 @ approx $235 per credit- $1645 annually
ESTIMATED ANNUAL SAVINGS- $2620= 5.4 YEAR SYSTEM PAYOFF
ESTIMATED TOTAL ENERGY SAVINGS OVER THE 25 YEAR LIFE OF THE SYSTEM- $24,375
ESTIMATED TOTAL SREC SAVINGS OVER THE 25 YEAR LIFE OF THE SYSTEM- $41,125

The above estimates are based on several variables:
1. the average solar hours per day, 4.04 in our area varies from year to year and determines how many kWh the system produces yearly
2. the cost of electricity
3. the value of SRECS, this is subject to change, it was $235 in April 2016


Contact Deal Construction - 847-705-6916
PO box 1098 Palatine, Il 60078
